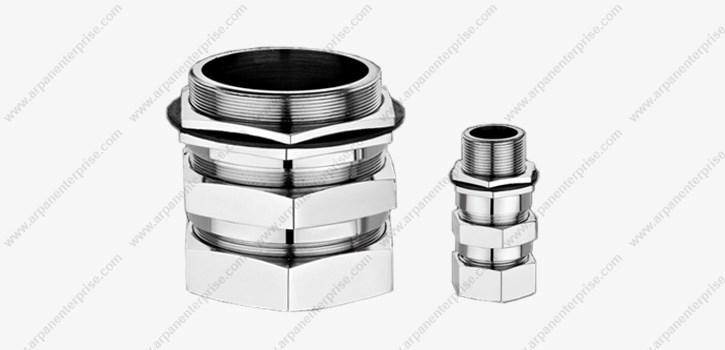

Flame Proof Double Compression Glands are generally used in hydrogen Gas/vapors area (for gas group IIC) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-65) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive Atmosphere. These glands are suitable for all types of cables like Armour, Unarmour, Power, Instrumention, XLPE etc.
| SIZE | AEFP IIC 01SSA TO AEFP IIC 016 |
| ENTRY THREAD | METRIC |
| ALTERNATE THREAD | NPT, BSC ET, PG, METRIC, BSP |
| ENTRY THREAD RANGE | 1/2" TO 4.5" OR M12 TO M110 |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED |
| ALTERNATE FINISH | TIN, CHROME |
| SEAL MATERIAL | NEOPRENE / SILICON |
| SEAL SHORE HARDNESS | 50 - 60 |
| ACCESSORIES | SHROUD, EARTH TAG, STOPPER, REDUCER, ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| FLAMEPROOF PROTECTION | IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| INGRESS PROTECTION | IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014) |
| APPROVAL | OUR AEFP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD |
Gland Consist Of Following Parts:

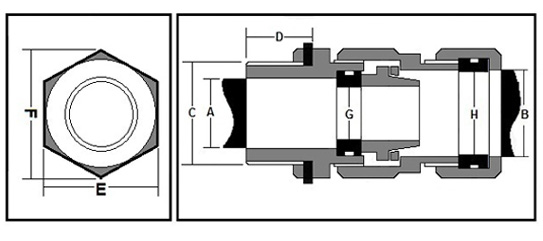

| No. | SIZE |
H | G | E | F | C | D | CABLE DIMENSIONS | ||
|---|---|---|---|---|---|---|---|---|---|---|
| (THREAD) | ||||||||||
| (A/F) | (A/C) | ET | MM | (THREAD LENGTH) |
A UNDER ARMOUR DIA |
B OVER ALL DIA |
||||
| 1 | AEFPIIC 01SSA | 12.00 | 8.50 | 19.50 | 22.50 | 1/2"ET | M12 | 25 | 8.00 | 10.0 |
| 2 | AEFPIIC 01SS | 13.50 | 9.00 | 22.00 | 25.00 | 3/4"ET | M20 | 25 | 8.00 | 12.0 |
| 3 | AEFPIIC 01S | 17.50 | 11.00 | 25.00 | 29.00 | 3/4"ET | M20 | 25 | 10.00 | 16.5 |
| 4 | AEFPIIC 01 | 19.50 | 14.50 | 27.50 | 32.00 | 3/4"ET | M20 | 25 | 12.50 | 18.0 |
| 5 | AEFPIIC 01A | 19.50 | 14.50 | 27.50 | 32.00 | 1"ET | M25 | 25 | 12.50 | 18.0 |
| 6 | AEFPIIC 02 | 21.00 | 16.00 | 29.00 | 34.00 | 1"ET | M25 | 25 | 14.00 | 20.0 |
| 7 | AEFPIIC 02A | 21.00 | 16.00 | 29.00 | 34.00 | 3/4"ET | M20 | 25 | 14.00 | 20.0 |
| 8 | AEFPIIC 03 | 23.50 | 18.00 | 31.00 | 36.00 | 1"ET | M25 | 25 | 16.00 | 23.0 |
| 9 | AEFPIIC 04 | 27.50 | 21.00 | 37.00 | 43.00 | 1"ET | M25 | 25 | 19.00 | 26.0 |
| 10 | AEFPIIC 04A | 27.50 | 21.00 | 37.00 | 43.00 | 1.1/4"ET | M32 | 25 | 19.00 | 26.0 |
| 11 | AEFPIIC 05 | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/4"ET | M32 | 25 | 23.00 | 30.0 |
| 12 | AEFPIIC 05A | 31.50 | 25.00 | 41.00 | 47.00 | 1.1/2"ET | M40 | 25 | 23.00 | 30.0 |
| 13 | AEFPIIC 06 | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/2"ET | M40 | 25 | 26.00 | 33.0 |
| 14 | AEFPIIC 06A | 34.00 | 28.00 | 46.00 | 53.00 | 1.1/4"ET | M32 | 25 | 26.00 | 33.0 |
| 15 | AEFPIIC 07 | 38.00 | 31.00 | 50.50 | 58.00 | 1.1/2"ET | M40 | 25 | 29.00 | 37.0 |
| 16 | AEFPIIC 08 | 42.00 | 36.00 | 56.00 | 64.00 | 2"ET | M50 | 25 | 34.00 | 41.0 |
| 17 | AEFPIIC 09 | 47.00 | 41.00 | 59.00 | 67.00 | 2"ET | M50 | 25 | 39.00 | 46.0 |
| 18 | AEFPIIC 010 | 53.00 | 45.00 | 66.00 | 76.00 | 2"ET | M50 | 25 | 43.00 | 52.0 |
| 19 | AEFPIIC 010A | 53.00 | 45.00 | 66.00 | 76.00 | 2.1/2"ET | M63 | 25 | 43.00 | 52.0 |
| 20 | AEFPIIC 011S | 57.50 | 51.00 | 74.00 | 85.00 | 2.1/2"ET | M63 | 25 | 49.00 | 56.0 |
| 21 | AEFPIIC 011 | 61.50 | 55.00 | 79.00 | 92.00 | 2.1/2"ET | M63 | 25 | 53.00 | 60.0 |
| 22 | AEFPIIC 012 | 68.00 | 62.00 | 84.00 | 97.00 | 3"ET | M75 | 25 | 60.00 | 66.0 |
| 23 | AEFPIIC 013A | 74.00 | 67.00 | 90.00 | 103.00 | 3"ET | M75 | 25 | 65.00 | 72.0 |
| 24 | AEFPIIC 013 | 79.00 | 73.00 | 99.00 | 113.00 | 3.1/4"ET | M82 | 25 | 71.00 | 78.0 |
| 25 | AEFPIIC 014 | 86.00 | 80.00 | 105.00 | 122.00 | 3.1/2"ET | M90 | 25 | 78.00 | 84.0 |
| 26 | AEFPIIC 015 | 96.00 | 89.00 | 116.00 | 134.00 | 4"ET | M100 | 25 | 87.00 | 94.0 |
| 27 | AEFPIIC 016 | 106.00 | 100.00 | 130.00 | 149.00 | 4.1/2"ET | M110 | 25 | 100.00 | 104.0 |
Any kind of Flame Proof DC Cable Gland IIC can be developed and supplied exactly as per customer's drawings and specifications.
